This Netzschalttafel was made by ZMNB. It was for the FuMO 3 „Zerstörer Säule“ This Radar was widely used on Bunkers and Ships. This one was in very bad condition when I received it. It had to be repainted and cleaned carefully but now it looks a loot better again.
On top are 3 indicator lights and another one below the main switch. I believe one of these might have been added post war but because I am not certain I have left it like it was for now. The big main switch in the middle is for the Main power 220VAC and is switchable between two different generators. What is special about it is that these information plates can be turned around and have writing for a Bunker on the back site the last picture will show this in detail.

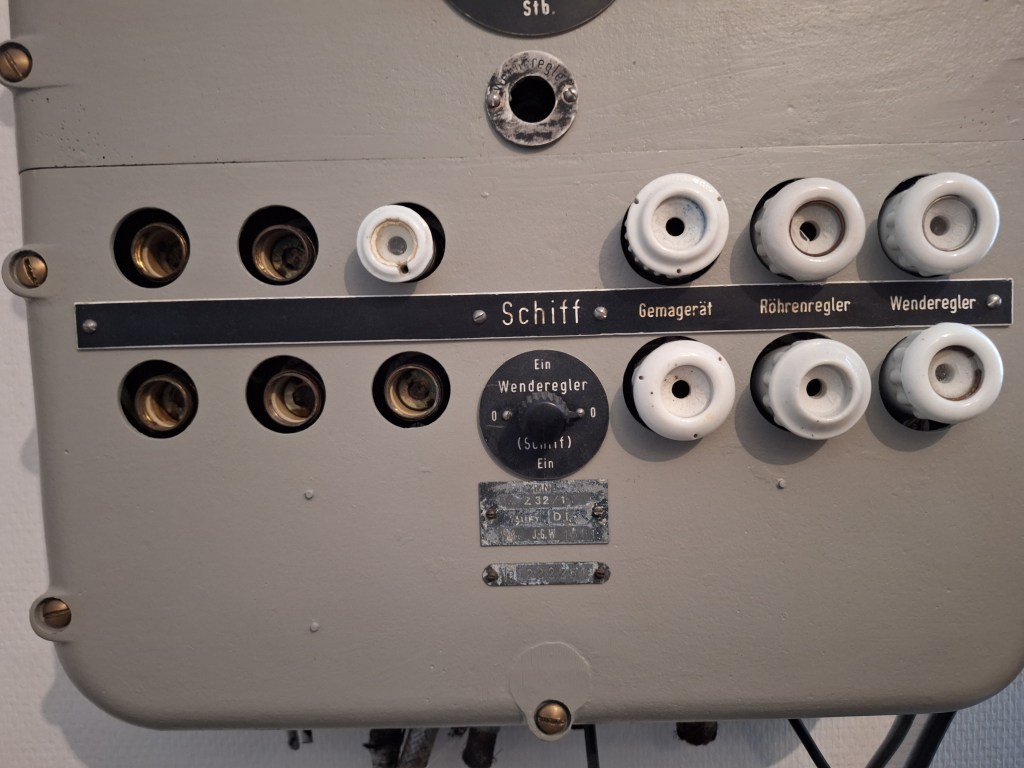

Here all the Fuses are situated. Interesting is that the left side of fuses are not mentioned I believe these were not used when this installation was used on a ship. Also visible is the switch for the Wenderegler and the type plate below it.

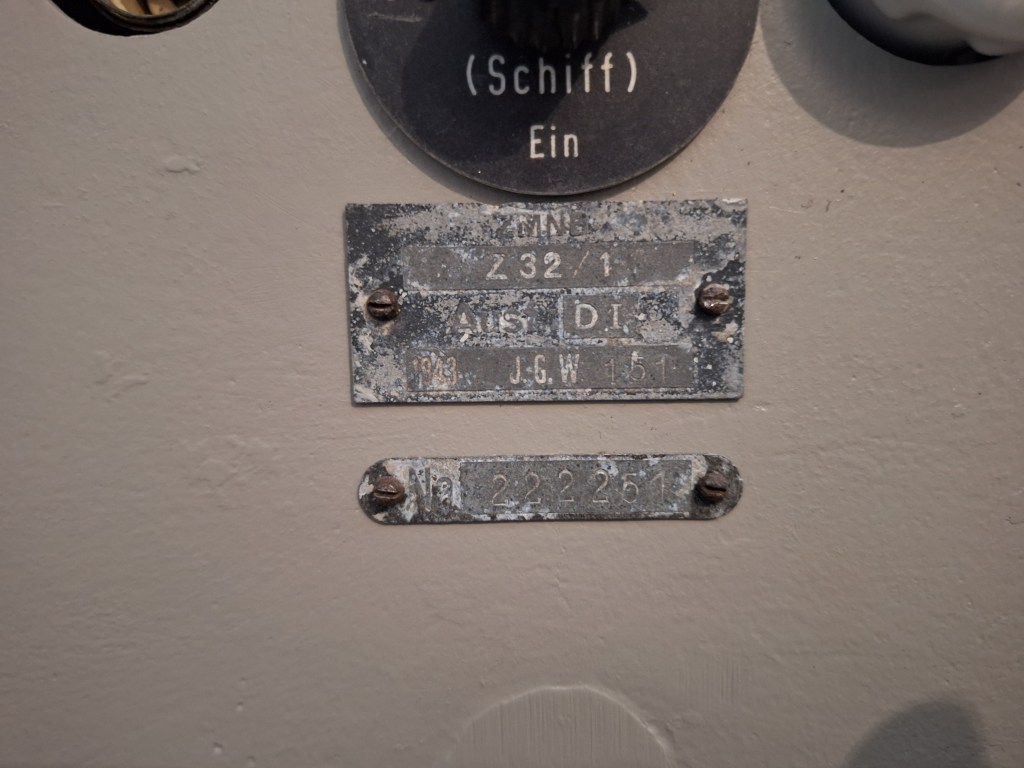

Here the type plate in more detail. It was made in 1943. Below it is another plate wich has the NA-Number on it NA-222 251.
On the bottom the original cables are still visible!! They were just cut of and left after its use was over. This is seen very rarely with any Equipment.

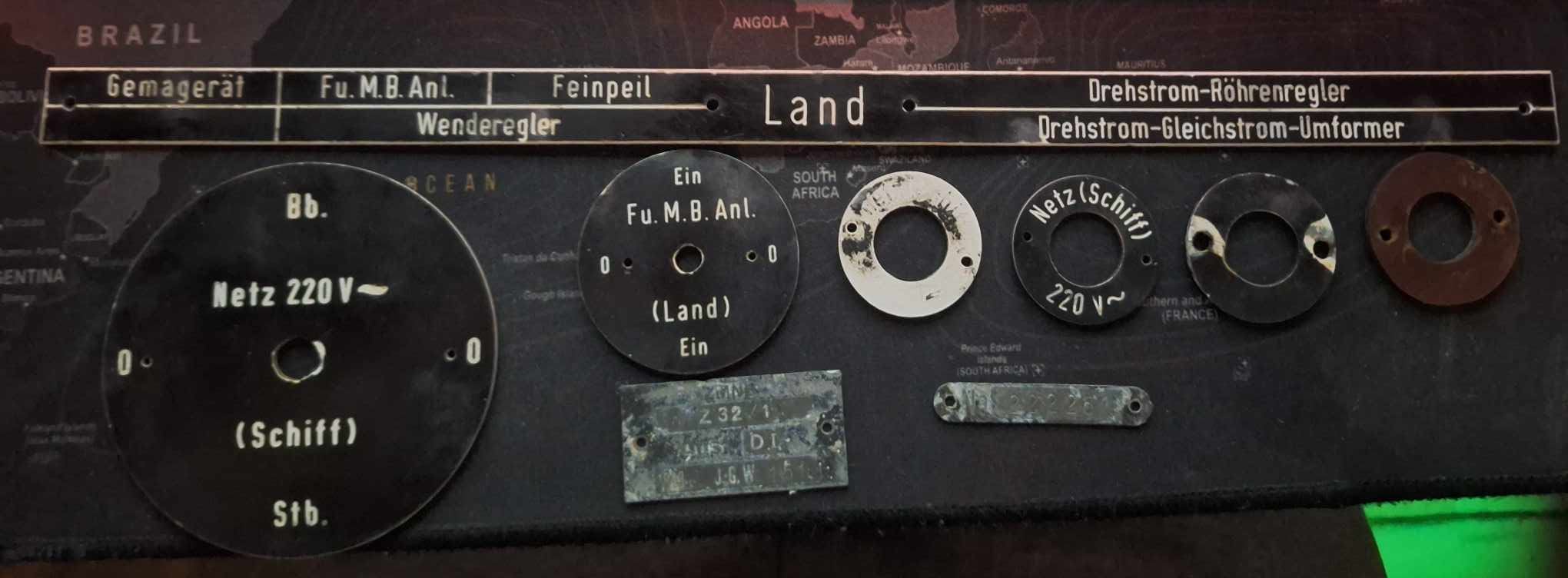

Here the mentioned plates are turned around. As you can see instead of Ship (Schiff) it now says land for a Bunker etc. Also the previous empty slot for the fuses now has inscriptions for more Equipment.
Here the NA-Number.
